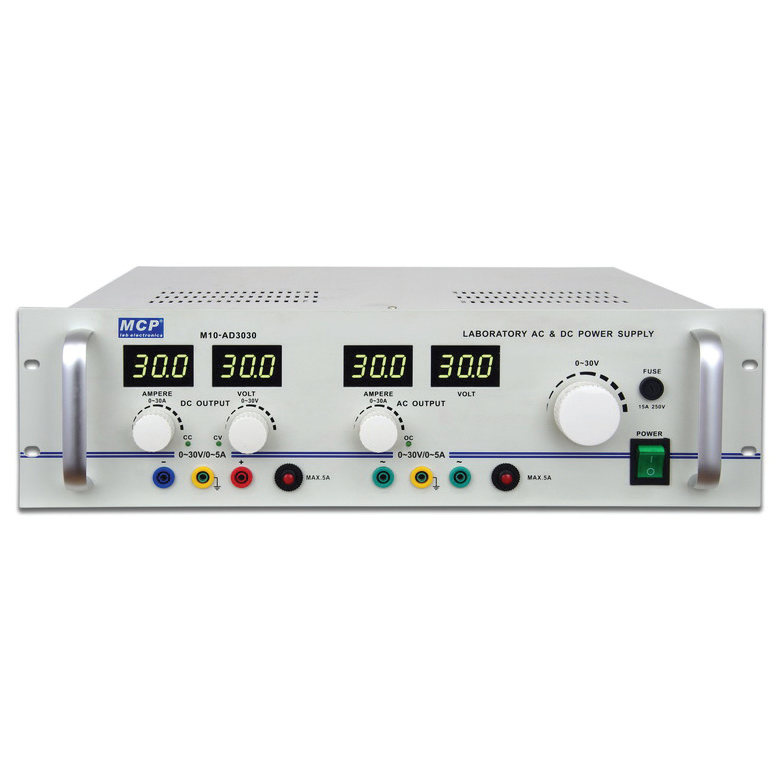

Description

AC and DC combined power supply
DC constant voltage and constant current
AC output over load protection
19-inch rack mount (3U) and benchtop
Output from front panel and rear panel
Temperature controlled fan
Specifications:
DC output:
Line Regulation: CV 6×10-4+3mV CC 2×10-
3+3mA
Load Regulation: CV 3×10-3+5mV CC 2×10-
3+5mA
Ripple & Noise: CV 50mVrms CC 50mArms
Display Accuracy: ±(1.0%Rdg+2digits)
AC output:
Display Accuracy: ±(1.0%Rdg+2digits)
Input Voltage: 110~127VAC±10%,
220~240VAC±10% Switchable
Dimensions: 19”3U
Weight: 22kg
