ADC/DAC
-
Description

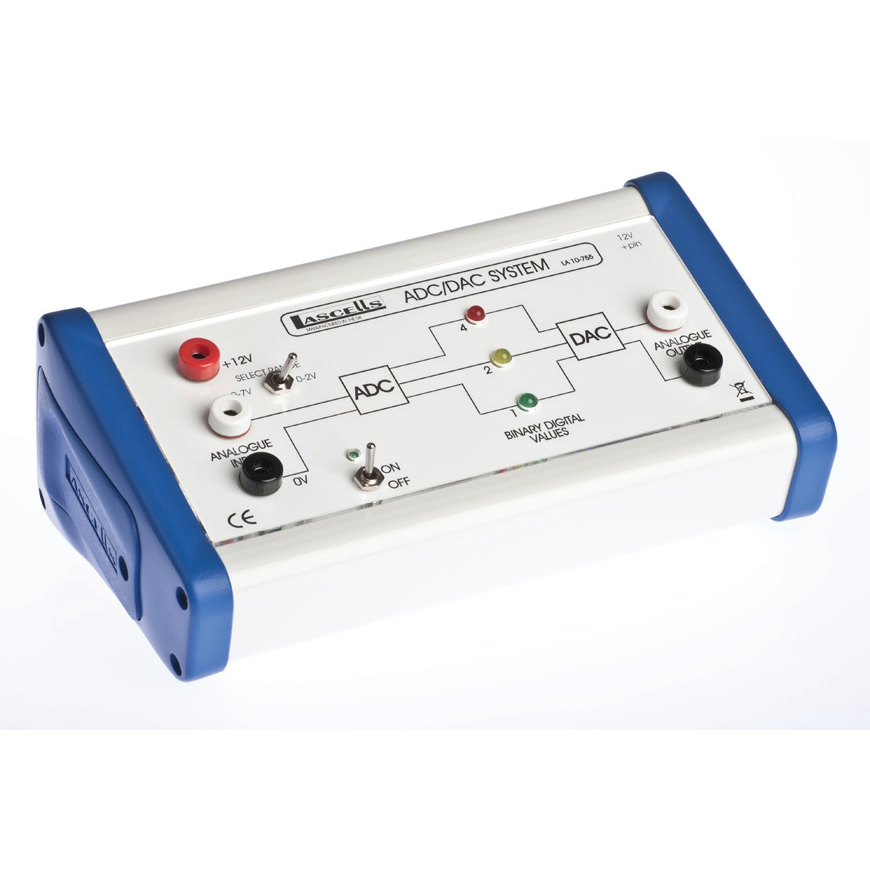

This instrument combines the functions of the separate ADC and DAC in one compact and simple to use
system. There are no adjustments required and there is no access to the intermediate binary values.
An analogue input in the range 0-2V or 0-7V is converted into Binary indicated by the three LEDs. For the
0-7V range the binary value changes by 1 for each 1V input. This digital value is then decoded by the DAC
and converted into an analogue signal again at the output.
Useful for teaching the topic of data communications. Powered from 12V supply.
