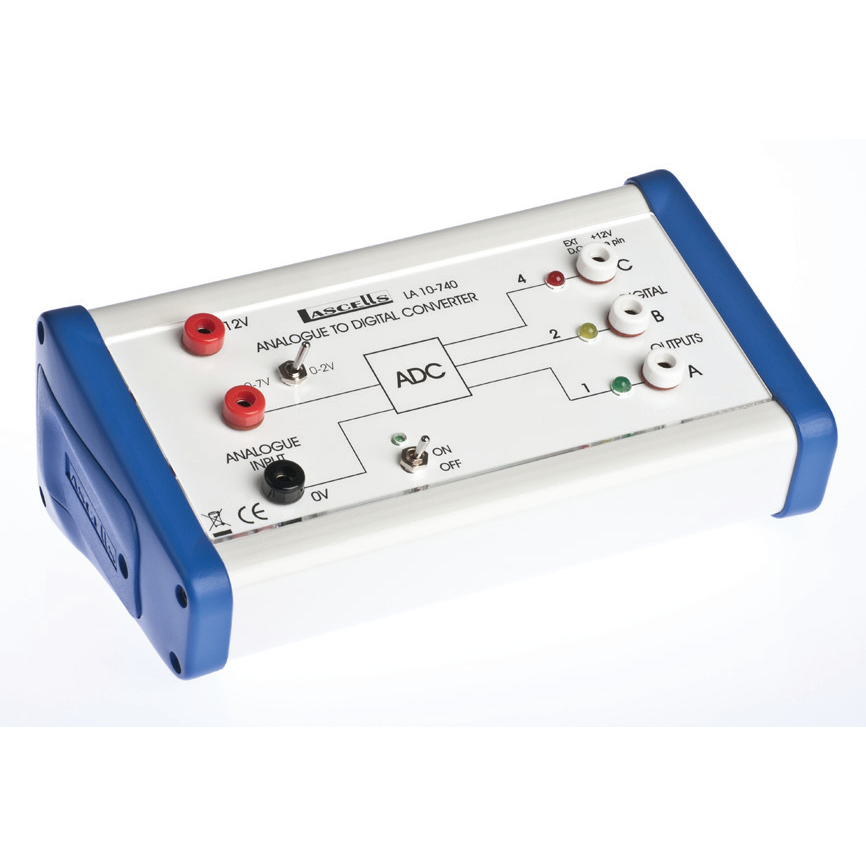

ANALOGUE TO DIGITAL CONVERTER (ADC)
-
Description
An analogue input in the range 0 to 7V is
converted to a binary digital output in 1 V steps
i.e. 1V is represented by 001, 2V by 010 etc.
A switch converts the unit to 0 to 2V sensitivity
so that low frequency sine waves from a signal
generator can be digitized. The binary output
is available at 4mm sockets for use with the
companion DAC.
An excellent system for demonstrating the basis
of digital communications.
A 12V d.c. input is required either from a smoothed
bench PSU or mains adaptor.
