Description

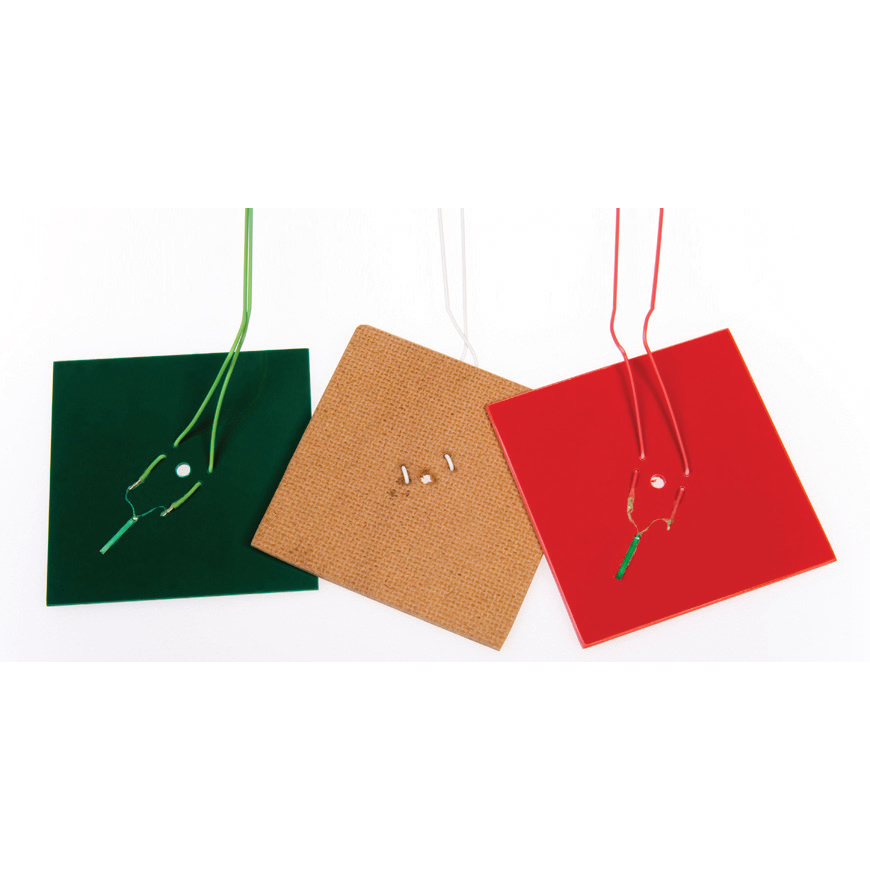

The set comprises three plates 100mm square
with piezo-electric, sensors bonded to the surface
connected to by flying leads.
The plates are 1mm and 2mm thick plastic and
3mm hardboard. In use the plate is attached to a
vibration transducer and the modes of vibration
can be studied by monitoring the output signal
on an oscilloscope.
