CAPACITOR SYSTEM
-
Description

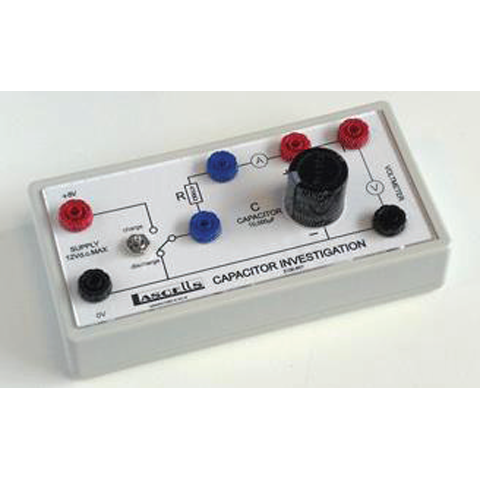

This apparatus provides a self-contained unit to
enable students to study the charge and discharge
characteristics of a capacitor. The large value
of C (0.01F) and the resistor chosen give a time
constant of about 50 seconds so that students
can easily take a manual set of readings for graph
plotting.
