Description

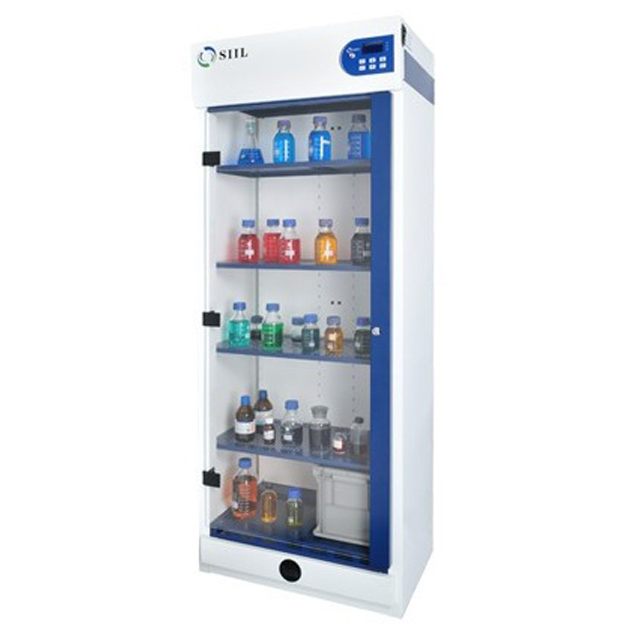

Vented filtering storagechemical cabinet retain the toxic
chemicals and vapor by the filtersystems ,protecting laboratorysafe.
Ductless technicals:
Active carbon filter systems withadvanced technicals replaced of
traditional ducted fumehood providing more safety,
efficiency option for thecustomer.
Optional filter.Vented filtering storage cabinetcomply to requirement of ANSI
Easy installment: easy work for the filter installmentand maintenance
Save power : after filtration the clean air return backto the ambient environment.don’t have to add extra
air-purify equipment.
Standard Equipment
1.LCD Screen
2.Four adjustable shelves :weight resistance over30KG
3.One Acid Box
4.Fun Failure alarm device(Manual Operation)
5.One Filter :Combination of Pre-filter and Main filter
6.Filter Saturation Sampling port
7.Retain tray
8.Door lock with key
9.Double filters
Optional Equipment
1.Additional adjustable shelves
2.Additional filters
3.Acid box
4.Black door for protecting the chemical that is
sensitive to the light
Technical Details
Size(W*D*H): 800*510*2150
Storage capacity: 0.64m3
Storage capacity of the bottles: 160 bottles *500 ml
Water volume: 10 liter mat
Single Shelf load -bearing: 30KG
Voltage /frequency: AC100-240V/50-60Hz
