Description

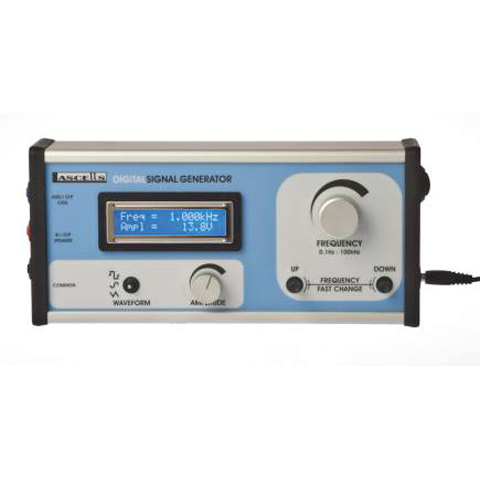

The well known Digital Signal Generator from
Lascells has been given a make-over to make it
even easier to use in the school laboratory.
The power supply is now a mains plug-top unit
with low voltage supply lead and frequency
changing is by press button UP and DOWN
controls with time sensitive rate of change. Sweep
from 0.1 Hz to 100kHz in seconds without the
need to change ranges.
Output power has been improved with all the
original precision features retained. Specification
Input 100 – 240V 50/60Hz mains plug-top
adaptor providing 24V d.c. Frequency range
0.1Hz to 100kHz continuous sweep Freq. Control
resolution Between 0.1 and 0.5% of the indicated
value Output 1 24V Pk to Pk into 600 ohms for
electronics Output 2 10V Pk to Pk into 8 ohms
for transducers Amplitude Control resolution
0.1V Waveforms Sine, square and triangle.
Key features:
• Ultra simplicity with only five controls.
• Continuous frequency control from 0.1Hz to
100kHz. This means a full sweep through the audio
band with no decade switch to contend with.
• Precision waveforms, Sine, Square and Triangle.
• High power amplified output for speakers and
transducers.
• Precision frequency and amplitude display.
• High resolution control with fast change
selectors. Step resolution 0.1 to 1% of indicated
frequency.
• 4mm output connections.
