Description

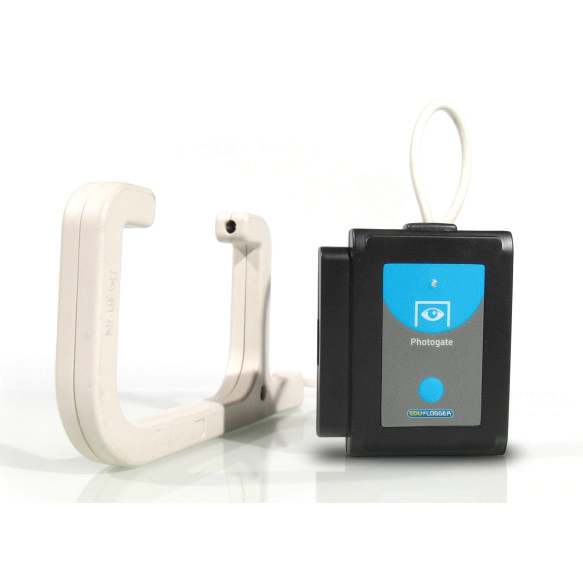

This sensor can be used to study various kinds
of motion. With five modes of operation, time,
velocity or acceleration can be measured with
one or two photo gates and associated timing
cards, as well as showing pictorially the status
(digital 1 or 0) of the voltage output of the photo
gate as timing cards pass through it.
The modes of operation are selected by clicking
on the relevant picture.
The measured values can be displayed digitally
or graphically.
The sensor has five modes of operations:
1) Time and Velocity mode
2) Acceleration with single photo-gate
3) Acceleration with two photo-gates
4) Velocity and Momentum with two photo-gates
5) Status graph mode
