Description

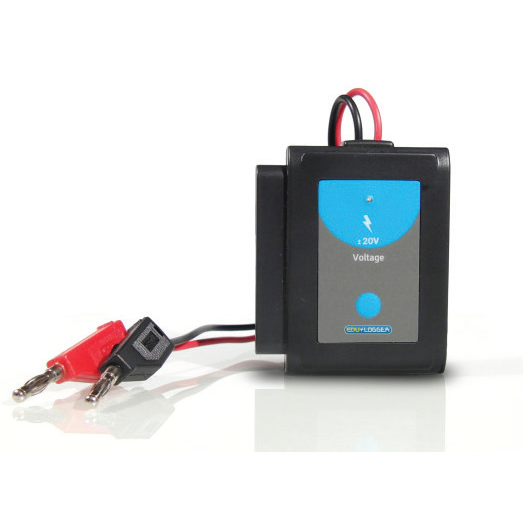

This sensor measures voltages across various
resistive, capacitive and inductive components,
as well as those of photovoltaic cells, batteries
and power supplies. This sensor can also be
used to measure electrode potentials and to
investigate the charging and discharging of
capacitors.
When used in conjunction with the Current
sensor the dependence of the current flowing
on the applied voltage can be studied in various
electric circuits.
This sensor can be used to measure low voltage
AC and DC circuits. With its 4 mm plugs it can
easily be connected into electric circuits.
It can also measure, using a step-down
transforner, the AC voltage of the main supply
and receive its frequency 50/60 Hz.
