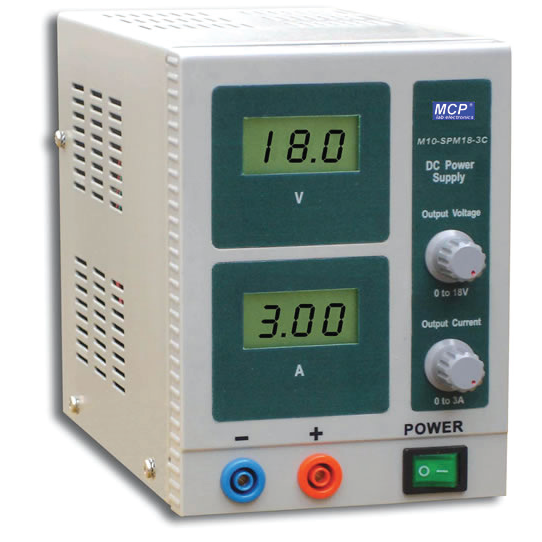

Description

Constant voltage and constant current
– Display with LED
Compact structure
Low ripple and noise
Plastic panel
Specifications:
Line Regulation: CV≤1X10-4+3mV CC≤2X10-
3+3mA
Load Regulation: CV≤1X10-4+2mV CC≤2X10-
3+3mA
Ripple & Noise: CV≤0.5mV rms CC≤3mA rms
Display Accuracy: Voltmeter±(0.2%Rdg+2digits),
±2.5% Full Scale Ampmeter±(1.0%Rdg+2digits),
±2.5% Full Scale
Input voltage: 110~127VAC±10%/60Hz,
220~240VAC±10%/50Hz Switchable
