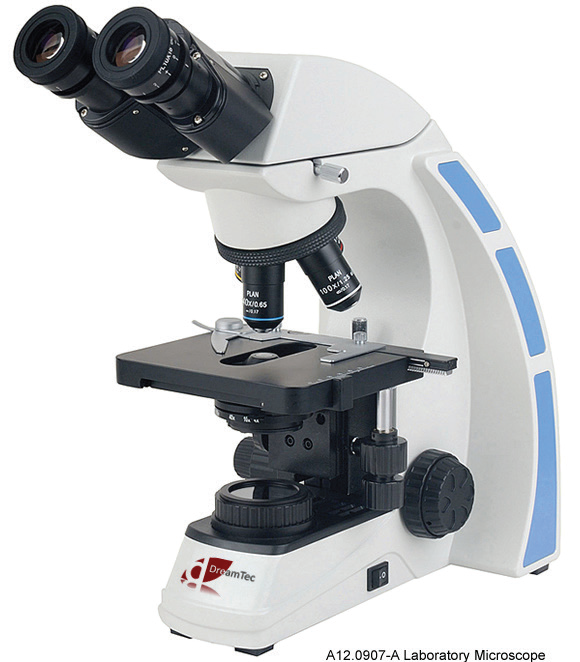

Specfication
Head
Binocular, 30° Inclined,
Interpupillary Distance 54-75mm
Eyepiece
PL10x/18mm, Wide Field, High Eye
Point, Diopter Adjustable +/-5 Degree
Objective
Infinity Plan Achromatic 4x/0.10,
10x/0.25, 40x/0.65, 100x/1.25
Nosepiece
Backward Quadruple Focusing
Low Position Coaxial Coarse & Fine
Focusing Knob, with Safty Limitation and Tension
Adjustment Ring. Coarse Range 25mm,
Fine Precision 0.002mm Working Stage
Double Layer Mechanical Stage
140*132mm, Moving Range 76*50mm, Precision 0.1mm Condenser
Kohler N.A. 1.25, with Socket for Phase
Contrast and Dark Field Slides, Center Fixed Light Source
3W LED, Intensity Adjustable, Center Fixed Power
90~240V Wide Range Power Supply
