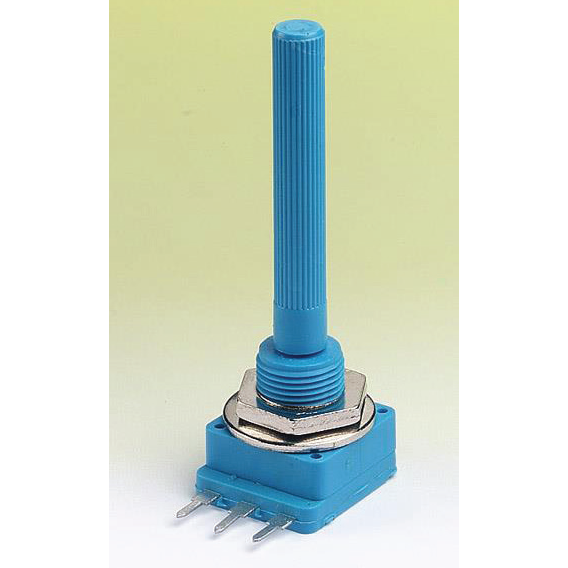

POTENTIO-METER, LINEAR, 0.25 WATTS
-
Description
A range of compact carbon track rotary controls.
The insulated all plastic body housing is semisealed
against dust and moisture. Panel mounting with
threaded bush and fixing hardware. PCB terminals.
Mounting bush: M10 x 0.75. Body diameter: 16mm.
Body depth: 8mm. Spindle length: 38mm. Spindle
diameter: 6mm. Rating at 40°C: 0.25W. Temperature
range: -25°C to +70°C. Spindle rotation: 300°.
Maximum Voltage: 500V. In packs of 5.
