Video Port:
SZM digital microscope are
provided with USB C-VIDEO and
S-VIDEO port, Video out signals
provided with analog signals
digital signals or two signals at
the same time.
Analog signals Out:
Plug one end of the PAV
cable into the scoket of the video
head.
Plug the C-VIDEO or S-VIDEO
of the PAV cable into the correct
socket of monitor or TV.
Connect the 12V DC power
to the power socket of the
PAV cable.

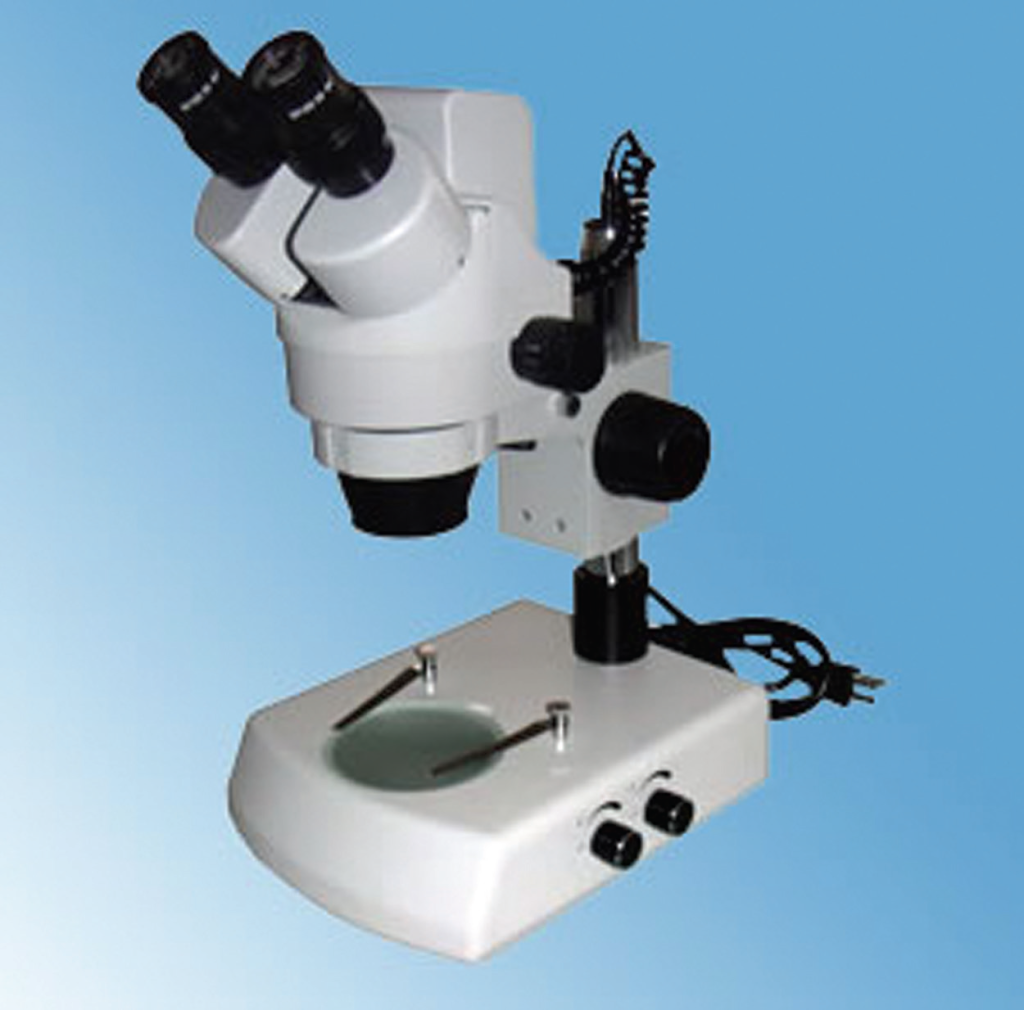

Features:
Inherit all function from SZM
series microscope.
Support scanner and digital still
camera (TWAIN Standard).
Viewing head: 45° inclined,
360° rotatable binocular head.
Eyepiece: Wide filed,high
-eyepoint eyepiece
WF10X20mm
Objective: Zoom objective
magnification 0.70X-4.5X.
Signal:
1) Analog: RCA,S-Video
signal wire;
2) Digital: USB data line, RCA,
S-Video signal wire.
Working distance: 100mm.
Magnification range:
7X-45X or 3.5X-180X
(Use auxiliary objective)
Inter-pupillary range:
55-76mm.
Both diopter range: 5mm.
